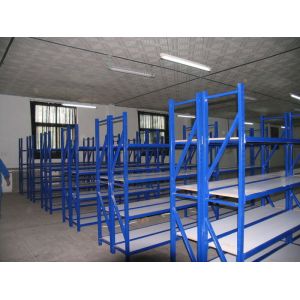

Middle duty racking Multifunctional middle duty racking long span
shelf
Description:
The shelf storage device is one of the most basic and the most
important equipment in warehouse, make full use of warehouse space
and reduce the storage cost; on the other hand, through the
reasonable arrangement, the access operation can effectively save
the human resources.Shelf is a kind of storage system which is born
from the idea of unit storage. The storage unit can be divided into
four categories, such as single product, container, pallet and
special products. Using storage unit for special items by single
element location,Warehouse management using electronic label
recognition technology to control the storage of goods, sorting,
handling, shipment, specifications, quantity, time to master the
storage area of the goods, in order to achieve smooth logistics,
reasonable and maximize the use of warehouse.
Features:
1. Anti-slip rubber inserted;
2. Advantage of Heavy Duty Storage Racks :Eco-friendly, Durable,
Safe, Recyclable, Hygienic, No worry about termites, No daily
Maintenance;
3. Color: Blue, other colors accroding to clients' request.
4. Racking surface treatment is static powder coating;
5. Upright frame include 2 uprights, several bracing and Bolts.
Product name | Steel multi layers Middle duty racking Storage Pallet Racking made
in China |
Specification | W 2000*D 600 *H2000 mm/4 layers |
Color | Standard color like White, Blue, Grey, Orange (Customized color is
available) |
Details Introduction | A new generation of light& medium-volume storage shelves,adopting
plug-in combination of Unique butterfly pass design instead of
welding and bolts assembly, The main frame and subframe unlimited
connections, saving the cost of post-chip as well as increasing the
loading capacity and decreasing the utilized space. |
Specification:
| Standards Size | Layers | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
| L2000*D600*H2000mm | 4 | 200~300kg/layer | 60*40*1.0 | 60*40*1.0 | 0.4 |
| L2000*D600*H2000mm | 4 | 400~500kg/layer | 80*40*1.2 | 55*45*1.5 | 0.7
|
Please kindly provide the below to us for quotation of heavy duty
pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
